Caliper Collar & Bolt

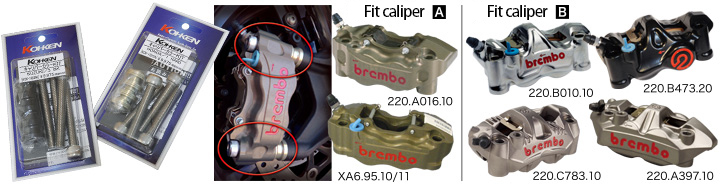

Offset Collar Kits for Brembo Radial Mount Calipers
![](../../images/business/original/bolt/collar-kit01_1803.jpg)
One kit includes
four offset collars and
four stainless steel cap bolts.
![](../../images/business/en-kohken_mij.jpg)
![](../../images/business/original/bolt/en-collar-kit02_1903.jpg)
An original color version can also be ordered! !
![boltcolor](../../images/business/original/bolt/en-cc-kit_16c_1503.jpg)
Stainless steel Caliper collar set for DAYTONA 675/R φ310 discs
![](../../images/business/original/bolt/washer_daytona01.jpg)
![](../../images/business/original/bolt/washer_daytona02.jpg)
1
DAYTONA675 (2006-) KOK-1501
2
DAYTONA675R (2011-) KOK-1502
The collars are used to adjust the existing caliper position when the Brembo φ310 disc is mounted on the Daytona 675 whose standard disc size is φ308.
![](../../images/business/en-kohken_mij.jpg)
Offset collars for Brembo Radial Mount Calipers
![KOK-2032](../../images/business/original/acc/kok1001-6_1703.jpg)
Radial mount offset collar 4 pieces
Offset: 5/7/8/10/12/13/15/18mm Color: Hard anodized / Black anodized*“HA” and “BK” at the end of the part number are“hard anodized” and “black” respectively.
![](../../images/business/en-kohken_mij.jpg)
KOK-1009HA/BK | 18 mm offset (convex front, concave back) |
KOK-1004HA/BK | 15 mm offset (convex front, concave back) |
KOK-1006HA/BK | 13 mm offset (convex front, concave back) |
KOK-1008HA/BK | 12 mm offset (convex front, concave back) |
KOK-1005HA/BK | 8 mm offset (convex front, concave back) |
KOK-1007HA/BK | 7 mm offset (convex front, concave back) |
KOK-1001HA/BK | 5 mm offset (convex front, flat back) |
KOK-1003HA/BK | 10 mm offset (convex front, concave back) |
KOK-1002HA/BK | 5 mm offset (convex front, concave back) |
Bolts
![](../../images/business/original/bolt/bolt01.jpg)
Stainless steel flange bolts with wiring hole (2-piece set)
KOK-1010F | M10/P1.25 Neck length 50mm |
KOK-1011F | M10/P1.25 Neck length 55mm |
KOK-1012F | M10/P1.25 Neck length 60mm |
KOK-1013F | M10/P1.25 Neck length 65mm |
KOK-1014F | M10/P1.25 Neck length 70mm |
KOK-1015F | M10/P1.25 Neck length 75mm |
![](../../images/business/original/bolt/bolt02.jpg)
Stainless steel taper cap bolts (2-piece set)
KOK-1010T | M10/P1.25 Neck length 50mm |
KOK-1011T | M10/P1.25 Neck length 55mm |
KOK-1012T | M10/P1.25 Neck length 60mm |
KOK-1013T | M10/P1.25 Neck length 65mm |
KOK-1014T | M10/P1.25 Neck length 70mm |
KOK-1015T | M10/P1.25 Neck length 75mm |
KOK-1019T | M8/P1.25 Neck length 35mm |
KOK-1016T | M8/P1.25 Neck length 40mm |
![](../../images/business/original/bolt/bolt03.jpg)
Stainless steel taper cap bolts Black X-coated (2-piece set)
KOK-1010TBK | M10/P1.25 Neck length 50mm |
KOK-1011TBK | M10/P1.25 Neck length 55mm |
KOK-1012TBK | M10/P1.25 Neck length 60mm |
KOK-1013TBK | M10/P1.25 Neck length 65mm |
KOK-1014TBK | M10/P1.25 Neck length 70mm |
KOK-1015TBK | M10/P1.25 Neck length 75mm |
KOK-1019TBK | M8/P1.25 Neck length 35mm |
KOK-1016TBK | M8/P1.25 Neck length 40mm |
![](../../images/business/original/bolt/bolt04.jpg)
Stainless steel hollow taper cap bolts (2-piece set)
KOK-1017T | M10/P1.5 Neck length 25mm |
KOK-1018T | M10/P1.25 Neck length 30mm |
Shim plates
![](../../images/business/original/bolt/stainless.jpg)
Stainless steel Shim Plates (4-piece set)
KOK-1020 | M8×15.5×0.5 |
KOK-1021 | M10×15.5×0.5 |
