Lever protector

CNC lever protector

▲5-piece protector machined from Aluminum alloy with a black anodized finish.

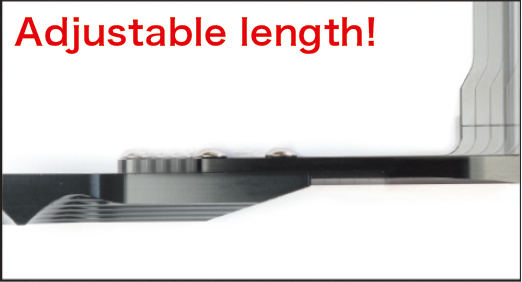

▲6-step adjustable length (about 155 to 180 mm) from the end cap center to the tip in increments of 5 mm

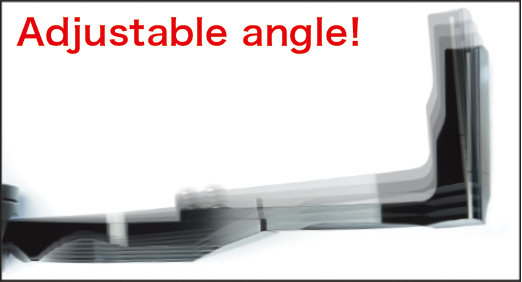

▲Stepless angle adjustment up to about 9° inward

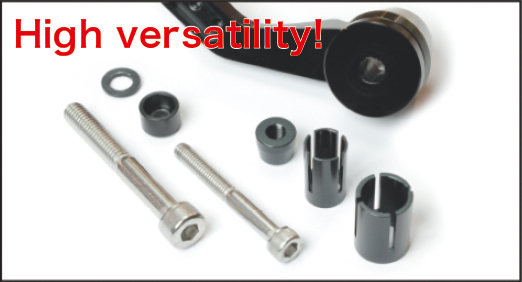

▲With φ14 and φ19 slit collars and M6 and M8 bolts for direct mounting


KOK-5000


  • ■Exclusive to front brake lever (right side of the handlebar)
  • ■Material: Aluminum alloy
  • ■Surface treatment: Anodized (black-standard color)
  • ■Weight: About 120 g (except short parts)

Technical Spec

  • Front brake lever (handle right side) only
  • Wearing method: Slit collar mount φ 14 ~ φ 19
    Direct bolt mount M6 / M8
  • Total length: Approximately 155-180mm (6mm adjustment in 5mm increments)
    From end cap center to tip
  • Material: aluminum alloy machined
  • Surface treatment: Anodized (standard color black)
  • Weight: Approximately 120g (excluding short parts)

The product in the photo is a prototype. There is a case where the actual product may differ.


KOHKEN original color version can also be ordered! !
